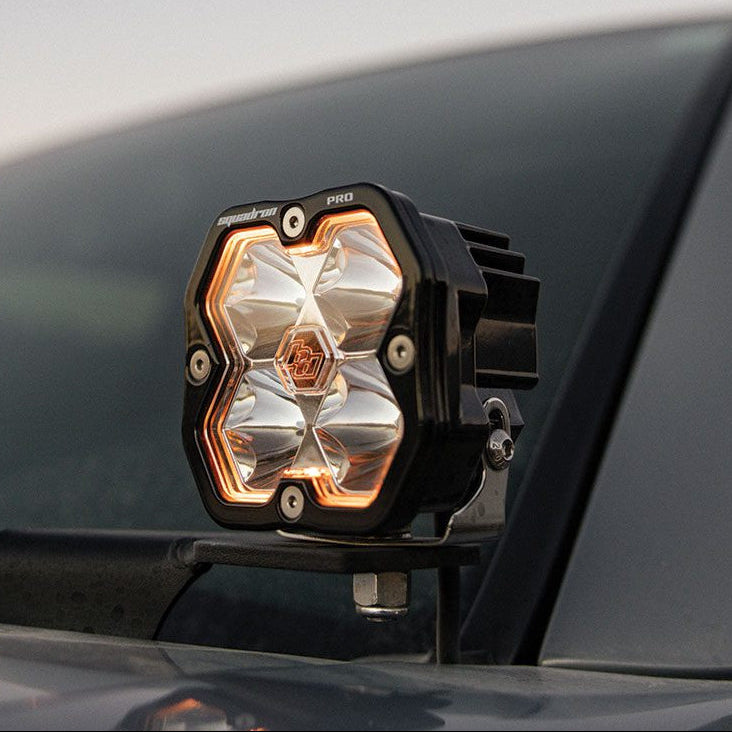

Squadron 2.0 Pro Light Pod Menu

The Squadron 2.0 Pro is Baja Designs' next evolution of their most trusted compact LED light pod. Completely redesigned from the inside out, the Squadron 2.0 Pro features a modern exterior, next‑generation optics, and a powerful 5,921‑lumen output at 65W—delivering a 41% increase in performance over the previous generation with improved beam control and efficiency. Precision‑engineered optics create a refined beam pattern that projects light farther and wider while minimizing wasted spill, giving you more usable illumination exactly where you need it.

Whether you're navigating tight trails, wide‑open desert, or night‑time roads, the Squadron 2.0 Pro delivers maximum clarity and confidence after dark. Every detail has been upgraded to raise the bar for compact LED light pods while maintaining the proven reliability that defines Baja Designs. The new gloss‑black aluminum housing delivers a bold, modern look while retaining the unmistakable Baja Designs style. Designed to maximize durability, performance, and consistency, the Squadron 2.0 Pro stands at the top of its class.

New features include updated lens patterns optimized for the redesigned optics, a rugged 4‑pin Deutsch connector for enhanced durability, and an all‑new color selectable backlight with nine selectable colors to match your vehicle’s style. Improved uService® components include clip‑in reflectors that stay secure during lens swaps, plus a redesigned gasket for better sealing and long‑term protection from the elements. A new mounting bracket provides increased vertical adjustability for precise aiming. Setting a bold new benchmark for LED auxiliary lighting, the Squadron 2.0 Pro is engineered for enthusiasts who demand uncompromising night‑time visibility. Like all Baja Designs products, it’s backed by our 30‑Day Satisfaction Guarantee and Limited Lifetime Warranty for complete peace of mind.

Features:

• Refined beam pattern- greater distance, wider coverage, reduced light spill
• RGBW backlight- 9 selectable colors to match any vehicle
• New clip‑in reflectors stay secure during lens changes, improving uService®
• New gasket design improves sealing and protection against the elements
• Redesigned mounting bracket allows greater vertical adjustability
• Standard 4‑pin Deutsch connector for improved wiring harness durability

Squadron 2.0 Pro Specifications:

• Lumens: 5,921
• Watts/Amps: 65W/4.7A @13.8V
• Operational Voltage: 12-32V
• IP69K Rated

ELS™ Scores:

• Squadron 2.0 Pro Spot Clear: ELS 86°/6.1/454/4930
• Squadron 2.0 Pro Driving Combo Clear: ELS 128°/7.4/403/4955
• Squadron 2.0 Pro Wide Cornering Clear: ELS 132°/7.6/159/4946
• Squadron 2.0 Pro Work/Scene Clear: ELS 148°/8.0/64/4575

Harness Kit Includes:

• (2x) Squadron 2.0 Pro Light Pods
• (1x) Wiring Harness
• All Necessary Mounting Hardware

Non-Harness Kit Includes:

• (2x) Squadron 2.0 Pro Light Pods
• All Necessary Mounting Hardware

NOTE: Single Light kits are not available with harnesses. The correct harness can be purchased separately (PN 60-0058)

Which Light Pattern should I pick?

Spot: A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3).

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120-degree circle that projects about 40 feet. This pattern is not suitable for driving. (Lighting Zone 7).

Lead times: most options are in stock ready to ship, some have lead times! Use the chat feature below for quick and accurate lead times on the specific product you are looking for. Thanks!
