Who are we to stand in the way of progress? Introducing the all new

OSR-X

With over 1.5" added height compared to the standard OSR we know and love, this opens up several possibilities.

  1. Run custom 14" shocks without a body lift
  2. Run 10-12" shocks and increase ground clearance over the standard OSR (using OSR spec shocks)
  3. Look cool doing it

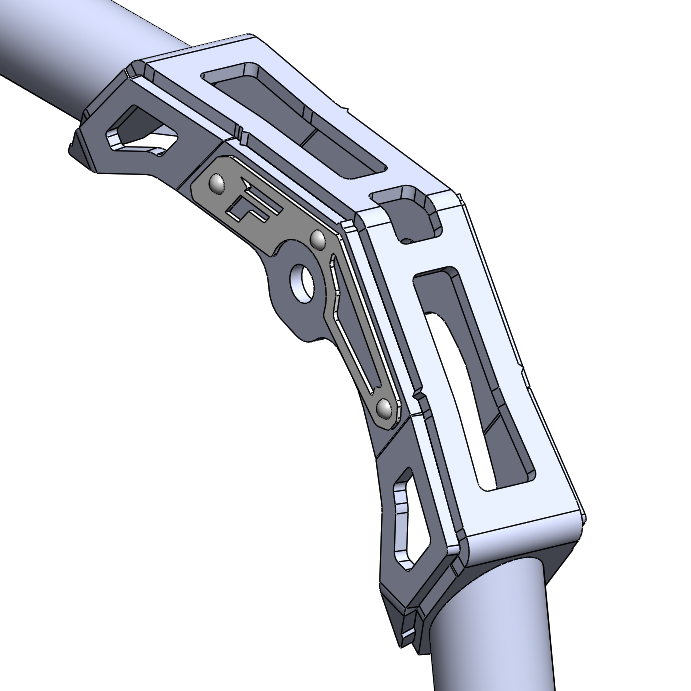

Move the shocks where they should've been in the first place, to the outside of the frame. The FGP "OSR-X" allows for longer shocks, makes shock install/removal a breeze, and greatly improves the efficiency and performance of your shocks.

This kit utilizes fishplate gusset frame plates to add load bearing strength at the mounting points, as well as radiused upper mounts to provide more weld surface and strength.

Designed to be compatible with 10-14" smooth body shocks.

For 2.0 shocks, a minimum 3.5” wheel backspacing is recommended for tire clearance. Example: if you have 4.5” BS wheels, you will need 1” spacers to bring it down to 3.5”. 2.5in shocks require minimum 3" backspace. Results may vary.

DISCLAIMERS:

  • Smooth body shocks with OD top hat will require a 45 to 90 degree fitting to clear shock mount pocket, potentially ID top hats as well. Will update once fitment is confirmed
  • Custom specked "OSR" shocks, same as the standard OSR, will be required to maximize the full benefits of the OSR-X
  • Frame notching will be required for 2.5" shocks (Option A & B)
  • (Option C) Protrusion in wheel well near upper mount will need extensive hammering for hoop clearance. Proceed at own risk.

What's included:

  • Fully assembled/welded OSR
  • Lower shock mount tabs
  • Flanged grade 8 hardware

Options:

  • Add reservoir mounts & hardware.
  • Add frame notch plates (for clearing 2.5" diameter shocks) (Not required for Option C)



Vehicle Fitment:

Option A:

  • 96-02 Toyota 4runner

Option B: Includes different lower mounts.

  • 95.5-04 Toyota Tacoma

Option C: Protrusion in wheel well near upper mount will need extensive hammering for hoop clearance. Proceed at own risk.

  • 2003-2022 Toyota 4Runner
  • 2007-2014 Toyota FJ Cruiser
  • 2003-2009 Lexus GX470
  • 2010-2022 Lexus GX460



**INSTALL INSTRUCTIONS**



Current Estimated Lead Time: 6-10 weeks once presale has concluded

Lead times are subject to change depending on order volume. We will do our best to estimate and update the site regularly. As this is a "made to order" item, all sales are final.
