Check Lead Times HERE

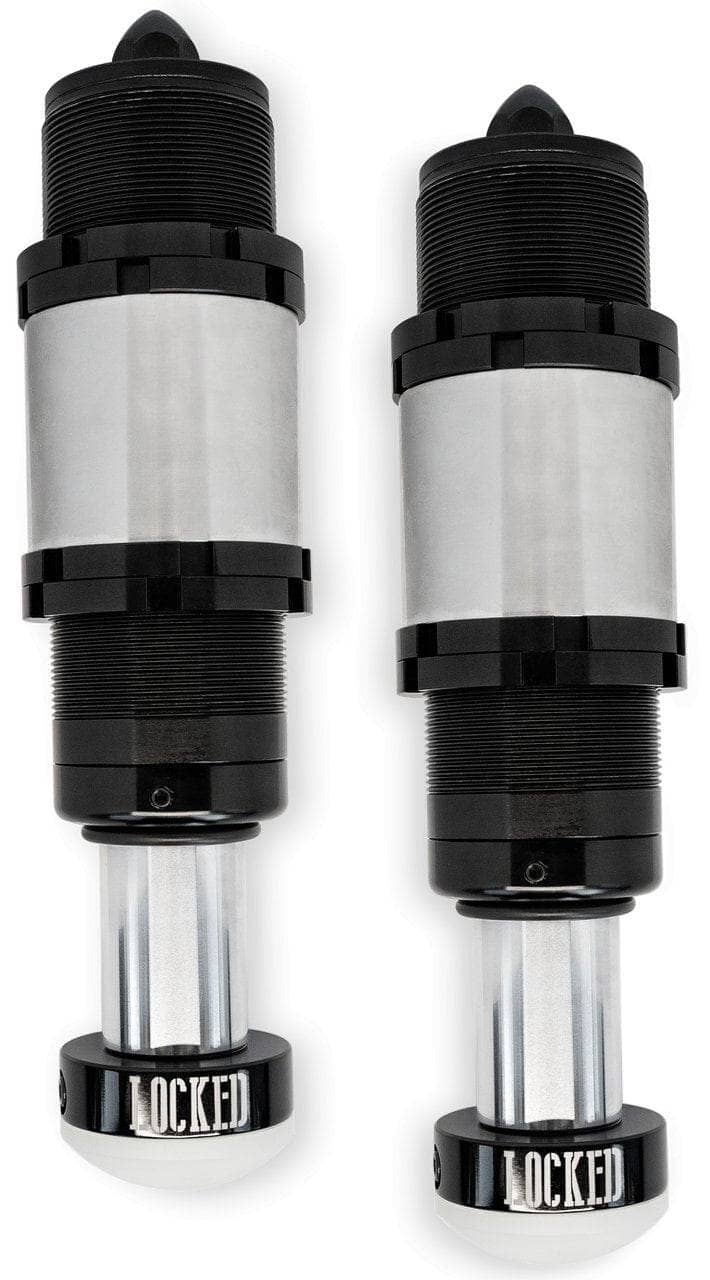

INCLUDES:
- (2) 2.5" Bump Stops
- (2) Threaded Mounting Sleeves (pin-style also available)
- (2) Sets of Locking Rings per Bump Stop
TECHNICAL SPECS:
- 2.5" Diameter Body
-
1.58" Hard-Chromed Shaft – Rust-resistant and self-cleaning with a mirror-polished finish for extended seal life
-
Travel Options:
- 2.5" Stroke – Extended: 12.875" | Collapsed: 10.375"
- 4" Stroke – Extended: 14.75" | Collapsed: 10.75"
-
Integrated Schrader Cap Mounts directly to the body—not the valve—for a stronger, cleaner seal
-
Travel Gauge O-Ring on shaft for easy stroke reference
-
Secure Indexing Pin prevents outer tube pinching during compression
-
Delrin Contact Pad with flush-mount design eliminates metal-on-metal contact for quieter operation
MOUNTING SLEEVES:
-
Threaded Design for added adjustability
-
360° Tube Retention – No pinch points like traditional cans
-
Weld-Ready – Designed to allow for shrinkage during fabrication
- Outer Diameter (Can Only): 3.03"
- Outer Diameter (With Lock Rings): 3.22"
BUILT TO PERFORM
- Viton Seals
- 4130 Chromed & Polished Shafts
- Black Zinc-Coated Steel Shock Bodies
- 6061 Anodized Aluminum Components
WARRANTY
1-Year Warranty on non-wearable parts. Proper installation is required to maintain coverage.
NOTE
Intended for off-highway use only.
