05-15 Tacoma Transmission Cooler Kit
$99.00
IN STOCK READY TO SHIP.

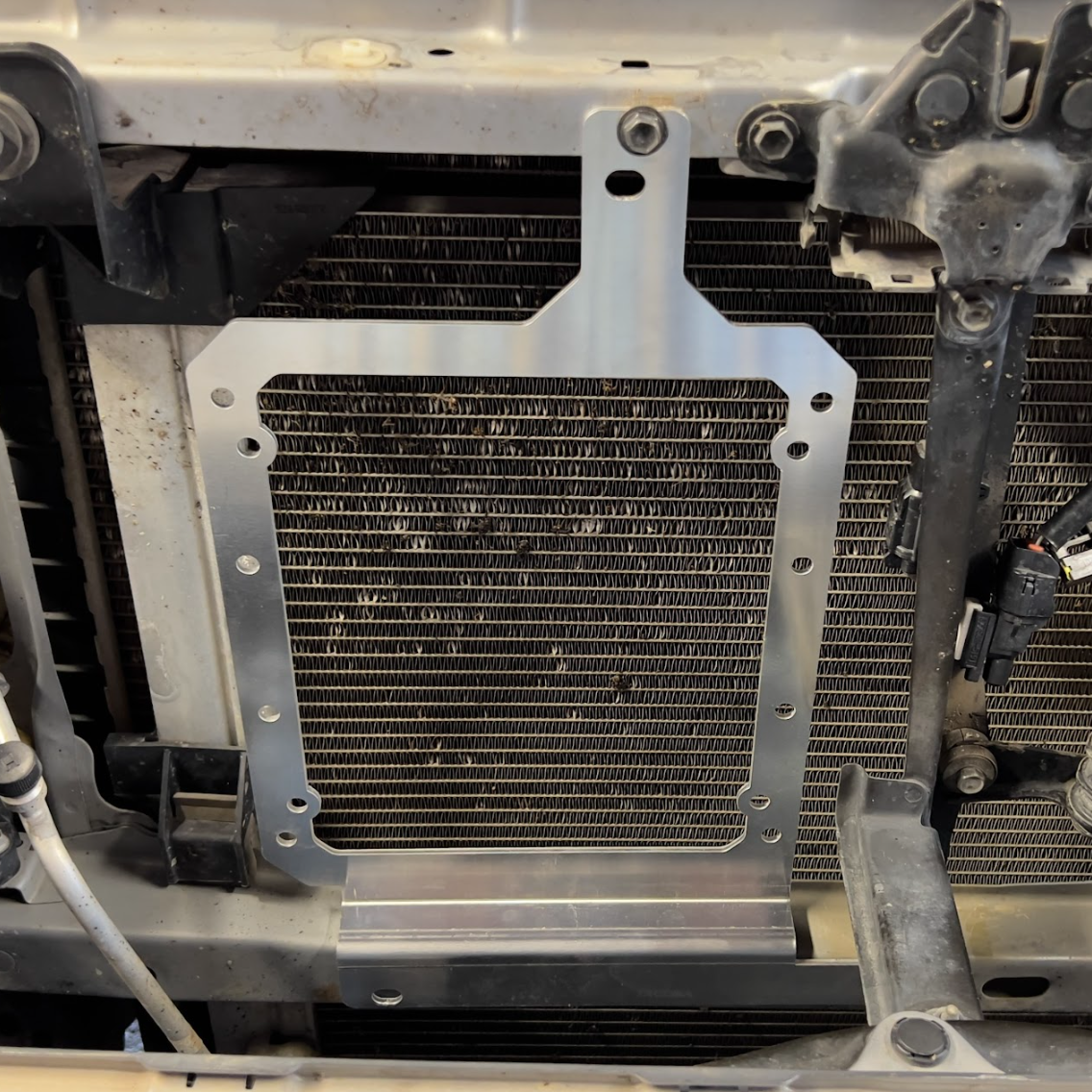

Reduce wear on your transmission by keeping temperatures under control! Featuring a "no-drill" install utilizing existing holes for an easy install process, these CNC pressbroke .125" thick 5052 Aluminum brackets make your transmission cooler upgrade a breeze. Compatible with all automatic transmission 2nd Gen (2005-2015) Tacomas.
This custom kit utilizes the Hayden 678 and 698 transmission coolers. Both Hayden coolers are identical in size, but the 698 is equipped with an internal temperature bypass which helps the fluid get up to operating temperature faster (great for colder climates). More info available here: Hayden Bypass Technology.
For Tacomas equipped with the small factory cooler, you have two options: (1) bypass and remove the small OE cooler, or (2) run the small cooler with this kit for additional heat dissipation (recommended).
Included with the Bracket Only Kit:
- Aluminum Mounting Bracket & required fasteners
Included with the Hayden 678 Kit:
- Aluminum Mounting Bracket & required fasteners
- Hayden 678 (non-bypass) cooler
- 3/8" transmission hose extension
- Edge trim guard
- (4) hose clamps
Included with the Hayden 698 Kit:
- Aluminum Mounting Bracket & required fasteners
- Hayden 698 cooler w/ Temp Bypass Sensor
- 3/8" transmission hose extension
- Edge trim guard
- (4) hose clamps
Inline Filter Option: For $27, a Magnefine inline transmission fluid filter can be added to your kit. This filter extends your transmission service cycle by keeping the fluid clean, and also extends transmission component life by 7 times by removing harmful ferrous metal particles with 99.9974% effectiveness!
NOTES:
- This product can be paired with the electric fan kit, available HERE
- 1 quart of ATF needed for install (we use Toyota WS or Valvoline Maxlife)
- Hood latch guard must be trimmed for proper fitment
