07-21 Tundra 5.7L Transmission Cooler Bracket
$139.00
If You Tow, Or Have Big Tires, You Need This
If your Tundra hauls heavy loads or wears bigger tires, this bracket is a must.
By the time the dash light comes on at 305°, it’s already too late—your fluid is cooked. And a complete drain and fill will cost over $200 in fluid alone.
Simple Fix. Big Difference.
This bracket lets you mount a real external cooler like it should’ve come from the factory.
- Designed for Derale or Setrab coolers (Derale available HERE)
- Solid, no-nonsense mounting—no zip ties
- Slim profile so you’re not blocking airflow
- Uses the factory thermostat (so you won’t run too cold)
Built Like Toyota's Should Be
- Laser cut from 1/8" aluminum
- Strong, simple, and made to fit
- Includes stainless hardware
How It Works With Your Truck
- Make sure your truck already has the factory transmission cooler (see photos)
- You can splice this cooler in series with the factory cooler, or cap off the factory cooler and run just this big one
- The factory cooler is built into your condenser or radiator depending on model year
- An external cooler makes a huge improvement over the “fluid warmer” in your radiator
Works With My Other Kits
Pair it with my Power Steering Cooler Bracket and save $10—because doing it once is smarter than doing it twice.
See separate listing for my install kit: Derale 19-Row Install Kit

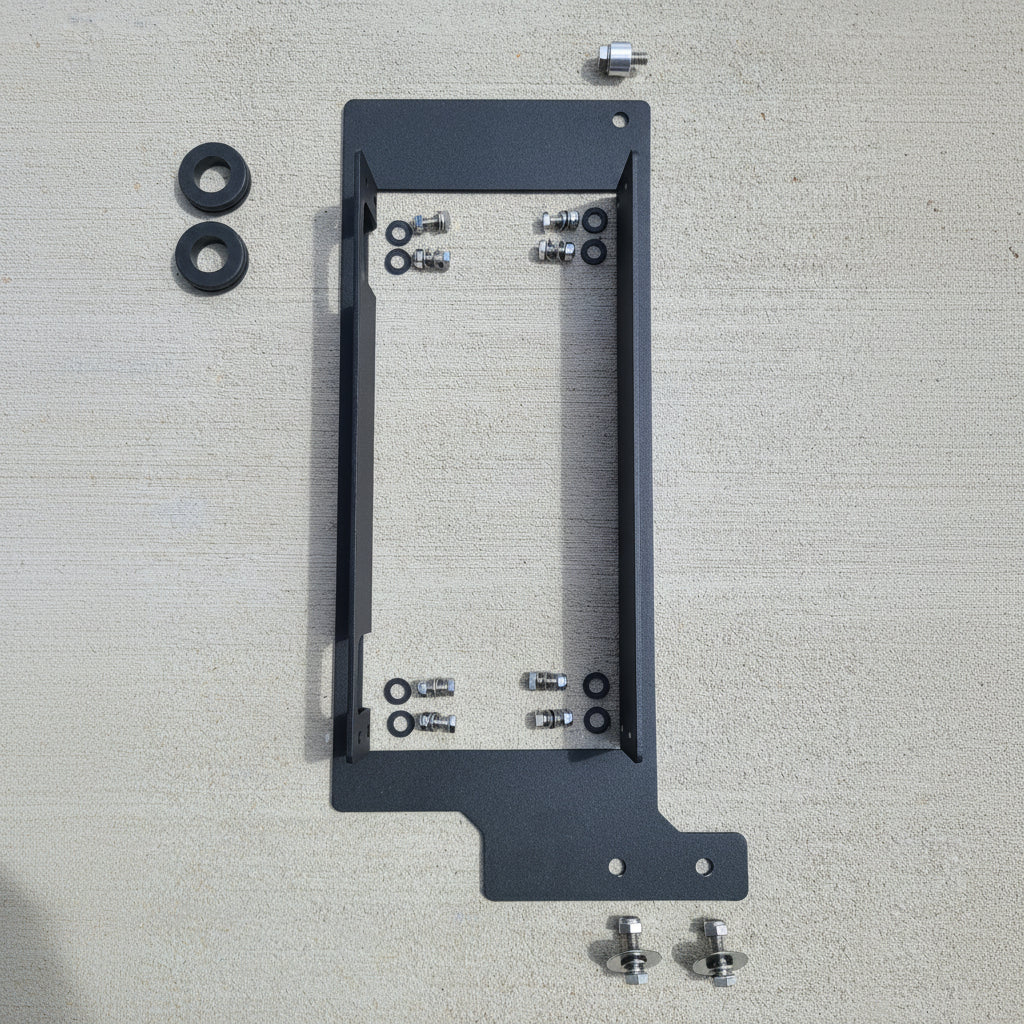

What’s Included
- Aluminum mounting bracket
- Stainless hardware (bracket → truck)
- Stainless hardware (cooler → bracket)
- Rubber grommets for hose routing (need to drill 1.25" holes in plastic shield)
Needed to Complete Install
- Derale or Setrab 19-row 10000 series cooler w/ barb fittings 13403, 51978, 51981 (90° barb fittings for 3/8" hose recommended)
- 3/8" inside diameter automotive hose — 6 ft
- 2 Quarts Transmission Fluid
- Magnefine Filter — Recommended
If you don’t have a factory cooler you'll also need:
(These parts are for 5.7L trucks only)
- Toyota thermostat — 32970-34030
- Toyota inlet hose — 32941-0C030
- Toyota outlet hose — 32942-0C040
- Toyota cooler pipe (hardline) — 32907-0C020
- Toyota (2) flange bolts — 90080-10400
- Toyota hose clamps (8) — 90466-A0014
- Magnefine Filter — Recommended
- 3/8" inside diameter automotive hose — 6 ft
(These parts are for 4.6L trucks only. Probably the only 4.6L truck that needs these parts are 2019's)
- Toyota thermostat — 32971-34030
- Toyota inlet hose — 32941-0C040
- Toyota outlet hose — 32942-0C050
Toyota cooler pipe (hardline) — 32907-0C040 - Toyota (2) flange bolts — 90080-10400
- Toyota hose clamps (8) — 90466-A0014
- Magnefine Filter — Recommended
- 3/8" inside diameter automotive hose — 6 ft
