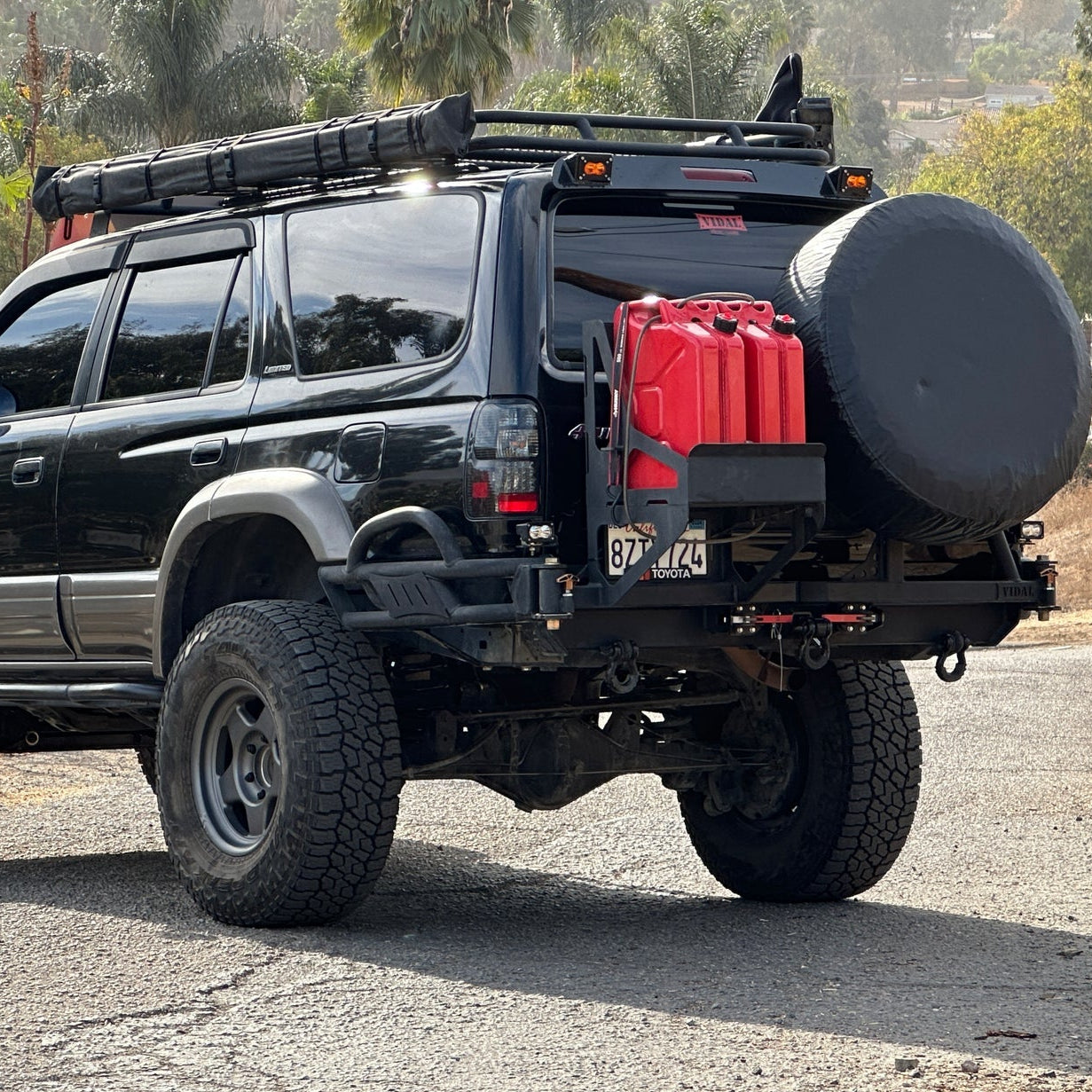

F-14D 3G4R Rear Bumper (Dual Swingout)

Introducing the F-14D 3rd Gen 4Runner tube bumper, from Vidal Metal Worx. Proudly CAD designed, tested and built here in Southern CA with American steel. This fully bolt-on bumper maximizes departure angle while providing the most protection and functionality possible.

The F-14D tube bumper comes in 3 styles! Tap the links below:

Standard / Single Swingout / Dual Swingout

Product Details:

Bumper Construction: Main Support- 2x3" 3/16" square tubing. Frame Mounting Bracket- 1/4" plate. Side Wings and Optional Quarter Panel Hoops- 1.75" x .120 DOM.

Latch: This bumper comes standard with the best latches in the industry. The E3 Machine Ultimate Billet Latch is a compression latch with a spring pin for that positive lock you crave. The design also features a pad lock hole if you want to keep your belongings safe. Select your preferred latch color in the drop-downs.

Hinge: The Ratha Sochenda HD Hinge Kit features a low-profile design, lasercut 5/16" steel, and a fully machined body! The plunger pin utilizes stainless steel wear pads, and can be locked at either 90° or 120° angles to clear your liftgate. Built with 1000lb Koyo taper roller bearings, 3/4" Grade 8 hardware, and double lip dust seals.

Drop-Down Options:

• Swingout Option- single or double jerry can holder, or molle panel
• Bumper Finish- raw or black powdercoat*

• Latch Finish- choose your color

Additional Options: visit these links to add to your build

• Energy body mount bushings* (+50)
• Side tube wing cover plates (FREE)
• Rear quarter panel hoops (+140)
• Shackle clevis mounts (+60)
• Tow receiver tube* (+250)
• Ultimate T handle (+30)

Delivery Options:

• Pickup- Free local pickup is available in El Cerrito, CA. Installation is also available! We will reach out after your order is placed to schedule pickup/install.
• Shipping- Flat rate shipping is available in the US for $400. To minimize costs, your bumper will be delivered to your nearest designated FedEx Freight facility. Vidal Metal Worx is a small company, and does not have shipping rates comparable to larger companies at this time. We appreciate your understanding!

*NOTE: Not compatible with body lifts. Powdercoat option only available for local pickup in El Cerrito, CA. Tow receiver does NOT have a tow rating, user assumes all risk. Rear body mount bushings MUST be replaced prior to installing this bumper. Adding an aftermarket bumper with worn bushings may result in excessive flex due to lack of support. We suggest replacing the OEM bushings with Energy Suspension bushings, known for effectively reducing movement for a secure fitment. Please be aware that vehicles may have varying rear main frame measurements due to factors such as age, accidents, or manufacturing differences. Vidal Metal Worx considers these variations to ensure proper fitment for the F-14D Rear Bumper.
