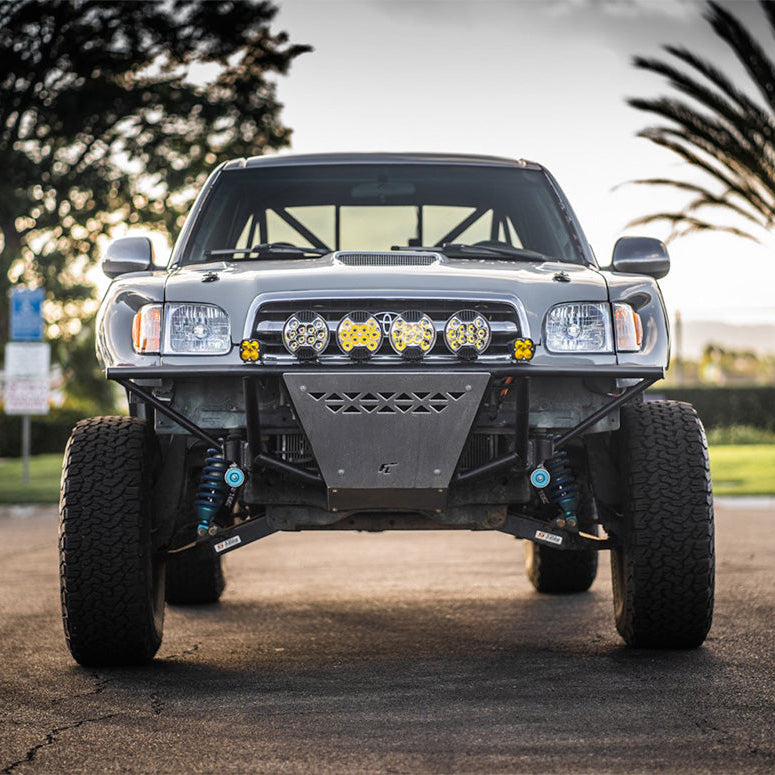

Long Travel Kit / Tundra 00-06 & Sequoia 01-07
$3,600.00
The Solo Motorsports Long Travel Kit for the 00-06 Tundra and 01-07 Sequoia will achieve 14″ of fully-functional 2WD or 12.5″ of travel for 4WD kits. Combine this 14″ long-travel kit with our Fully Fabricated Spindles, 1″ Lower Uniball Conversion with Heim Steering upgrades and your truck's strength and durability is greatly improved.
We took it a step above our competitors and made ¾” heims standard on the UCAs included in this kit! This will help to align your truck, even if you have a worn and fatigued frame.
Our Toyota W-I-Y UCA Double Shears are not included but highly recommended in order to keep the cross shaft bolt from bending during hard driving.
If you have a 4WD truck, but you'd like to upgrade your axles to RCVs, select the 2WD option and then add these RCV Axles for Solo Kits to your cart
Recommended grease for bushings – Maxima Waterproof Grease
Application
- 2000-2006 Toyota Tundra 2WD/4WD
- 2001 to 2007 Toyota Sequoia 2WD/4WD
Specs
- 14” of wheel travel 2WD
- 12.5″ of wheel travel 4WD
- 3 1/2″ per side increased track width
- Fits 35″ tire size
- Fiberglass required: Yes
- Black Semi-Gloss Powder coated finish
- Extended Front Brake Lines
- 2WD/4WD compatible
- Upper Control Arms with 3/4″ heim pivots and 1″ uniballs
- Built in strike pads on Lower Control Arms for bump stops
- Lower ball joint is pushed forward 1″ for better firewall clearance
- Dual lower shock mount on the LCA to run a secondary shock
- Extended Front Brake Lines
- MIG welded construction
- 4130 Chromoly 1″ uniball cups
- Made in the U.S.A
Long Travel Kit Includes
- MIG Welded Tubular Upper Control Arms
- MIG Welded BOXED Lower Control Arms
- FK 3/4″ heim pivots
- FK 1” uniballs
- Polyurethane bushing pivots with center sleeves
- Machined Zinc Plated Steering Connectors
- DOT Stainless Brake Lines
- Limit Straps with weld-on frame tabs
- Upper Shock Coil Bucket Adapters for 8″ stroke coil over shocks*
- Grade 8 Hardware
- 17-4 Stainless Steel Misalignment Spacers
- Extended 4WD complete axle package (ONLY FOR 4WD KITS)
Notes
- 2.5 x 8″ stroke coilover shocks not included
- Small LBJ: 00-02 Tundra Access Cab, 00-03 Sequoia (Square bolt pattern)
- Big LBJ: 04-07 Sequoia, 03-06 Tundra (Rectangle bolt pattern)
